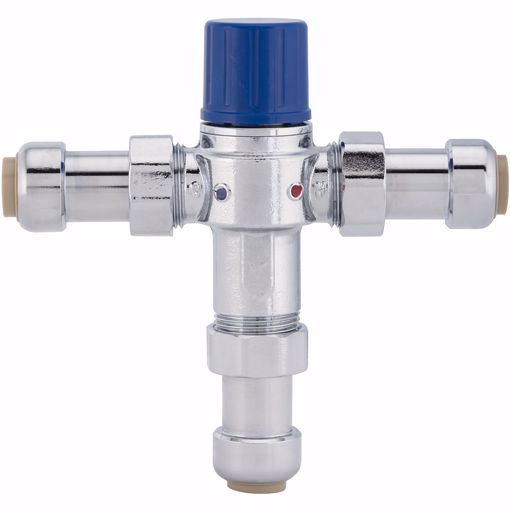

    Picture of 3/4" PlumBite® Push On Thermostatic Mixing Valve

    3/4" PlumBite® Push On Thermostatic Mixing Valve

    SKU: C77469LF
    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 195°F and maximum pressure of 125 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASSE 1070/ASME A112.1070/CSA B1 25.70-15, ASSE 1017, ASSE 1069 by CSA and ASSE 1069, UPC by IAPMO
    • Lead Free
    • 5 year warranty
    • Individually packaged

    Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!

    • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
    • No soldering, glue, heat or tools required to join the pipe
    • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
    • Maximum temperature of 195°F and maximum pressure of 125 PSI
    • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASSE 1070/ASME A112.1070/CSA B1 25.70-15, ASSE 1017, ASSE 1069 by CSA and ASSE 1069, UPC by IAPMO
    • Lead Free
    • 5 year warranty
    • Individually packaged

    Country of Origin:China

    Material:Brass

    Size:3/4"

    Valve Body Material:Brass

    Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Fits Pipe Size:3/4"

    Max Temperature:195°F

    Max Pressure:125 psi

    Temperature Range:40°F - 140°F

    Working Temperature:40°F - 140°F

    Approved Applications:Potable Water

    Color:Rough Brass

    Gasket Material:EPDM, Peroxide Cured

    Warranty:5 Year

    AB100 Certified:N/A

    CEC Listed:No

    cUPC Listed:No

    UPC Listed:Yes

    End Connections:Push

    ANSI Standard:ANSI Standard:ANSI 372-2016ANSI 61-2017

    ASME Standard:ASME A112.1070-2015

    ASSE Standard:ASSE Standard:ASSE Standard:ASSE 1069-2005ASSE 1017-2009ASSE 1070-2015

    CEC Compliant:No

    CSA Listed:Yes

    IAPMO Listed:Yes

    Lead Law Compliant:Yes

    MASS Approved:Yes

    NSF Certified:No

    NSF Standard:NSF Standard:NSF 372-2016NSF 61-2017

    SDWA Compliant:Yes

    HAZMAT:No

    Products specifications
    Product Mixing Valves
    Type Push-On
    Color Rough Brass
    Material Brass
    Size 3/4"
