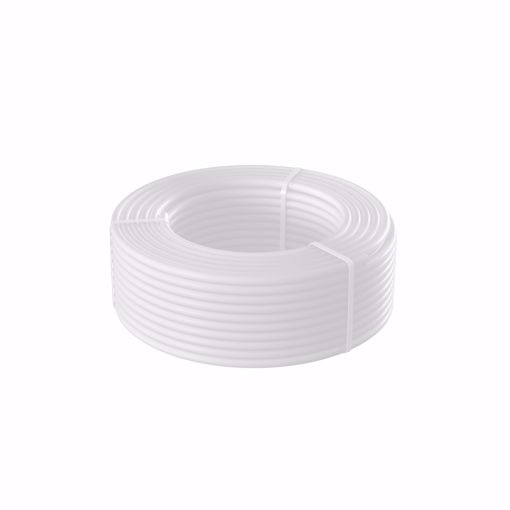

    2” x 100’ Natural PEX-A Oxygen Barrier Pipe, Coil

    SKU: F76018
    • Crosslinked polyethylene; PEX 5106
    • Approved for use with F1960 fittings
    • Easy installation
    • Corrosion resistant
    • Quiet operation
    • Approved for use in radiant/hydronic applications
    • NSF certified to ASTM F876/877 and CSA B137.5 per NSF 14
    • NSF/ANSI 14 approved
    • ASTM E84, ASTM F876, ASTM F877, and ASTM F2023 approved

    With its superior, durable crosslinking pattern, Jones Stephens’ Oxygen Barrier PEX-A pipe is highly flexible. It creates less kinking and requires less fittings compared to alternate piping methods, making installation simple and saving the installer time and energy. PEX-A pipe expands to absorb the sound of water hammer – providing quiet operation. Its additional layer of polyethylene creates a moisture barrier, making it safe for radiant/hydronic applications and safe for burying in concrete. Manufactured to the highest industry standards, PEX-A pipe is freeze resistant, corrosion resistant, and energy efficient. Approved for use with F1960 expansion fittings.

    • Crosslinked polyethylene; PEX 5106
    • Approved for use with F1960 fittings
    • Easy installation
    • Corrosion resistant
    • Quiet operation
    • Approved for use in radiant/hydronic applications
    • NSF certified to ASTM F876/877 and CSA B137.5 per NSF 14
    • NSF/ANSI 14 approved
    • ASTM E84, ASTM F876, ASTM F877, and ASTM F2023 approved

    Country of Origin:Spain

    Compatible Valve Type:Compatible Valve Type:Compatible Valve Type:F1960F1807F2159

    Inlet Connection Size:2"

    Material:Crosslinked Polyethylene

    Outlet Connection Size:2"

    ID:1.629"

    OD:2.125"

    Max Temperature:203°F

    Pipe/Tubing Size:2"

    Max Pressure:160 psi

    Temperature Range:73°F - 180°F

    Tensile Strength:>2900 psi

    Working Pressure:100 psi

    Working Temperature:180°F

    Approved Applications:Water

    Color:Natural

    Length:100'

    Wall Thickness:.248"

    Warranty:11-25 Year

    AB100 Certified:N/A

    ADA Compliant:No

    CEC Listed:No

    cUPC Listed:No

    End Connections:Tube

    ANSI Standard:ANSI 14

    ASTM Standard:ASTM Standard:ASTM F876ASTM F877

    CEC Compliant:No

    CSA Listed:No

    IAPMO Listed:No

    Lead Law Compliant:No

    MASS Approved:No

    NSF Certified:Yes

    NSF Standard:NSF 14

    SDWA Compliant:Yes

    HAZMAT:No

    Products specifications
    Product PEX-A Pipe
    Style Coil
    Type Oxygen Barrier
    Color Natural
    Material Crosslinked Polyethylene
    Length 100'
    Wall Thickness .248"
